Quick Answer
A smart lock may suit a market but still be unsuitable for a particular door or installation condition.
A smart lock model should not be treated as universally compatible. Review the actual door, existing preparation and proposed mortise before final confirmation.
- Door material and construction
- Finished door thickness
- Opening direction
- Existing mortise and cut-out
- Handle, panel and frame clearance
- Clear photographs or drawings
What to confirm nextSend representative door photographs, measurements and existing mortise information before selecting the sample direction.
Start With the Actual Door
Identify the material and construction, then measure the finished installation area. Record hinges, opening movement, frame, strike, current handle and lock arrangement, and environment. Where a project has several door types, list each relevant condition.
Examples include wood, metal, aluminium-framed construction, glass or narrow-frame doors, security doors and fire-rated doors. They identify conditions only; they do not claim universal SUPTER compatibility.
Material and construction
Identify the door material, internal construction, reinforcement and any decorative layers around the intended installation area.
Finished door condition
Record the measured thickness, existing openings, edge preparation, frame and strike rather than relying only on a nominal door specification.
Opening and environment
Show hinge position, push or pull movement, indoor and outdoor references where relevant, and the expected installation environment.
Project variation
List the different door types or installation conditions that may need separate representative checks.
Compatibility Information to Confirm
Use this table to organize the preliminary review. It does not replace model-specific documentation or a qualified installer’s assessment.
Review more than front-panel dimensions. Internal depth, cut-outs, frame, strike, handle movement and nearby hardware can affect installation. Product functions and appearance should be evaluated with the actual door, not used instead of mechanical information.
Photographs and Measurements to Prepare
A useful enquiry combines overall views with close details. Not every item is required for every door, but clearer information reduces uncertainty and helps identify what still needs professional confirmation.
Recommended photographs
- Full exterior side of the door
- Full interior side of the door
- Door edge with the current mortise
- Frame and strike area
- Existing handle and key or cylinder area
- Door opened to show the hinge side and opening movement
- Close-up of existing openings, previous drilling or reinforcement
- Any narrow frame, glass, decorative panel or special construction
Recommended information
- Door material and construction
- Measured finished thickness
- Hinge side and push or pull direction
- Current mortise and relevant reference dimensions
- Installation environment
- Number of different door types
- Estimated quantity
- Preferred functions
- Intended sample model, if already shortlisted
Label each set by door type. Separate records are more reliable than one generic description for different conditions.
How SUPTER Supports the Review

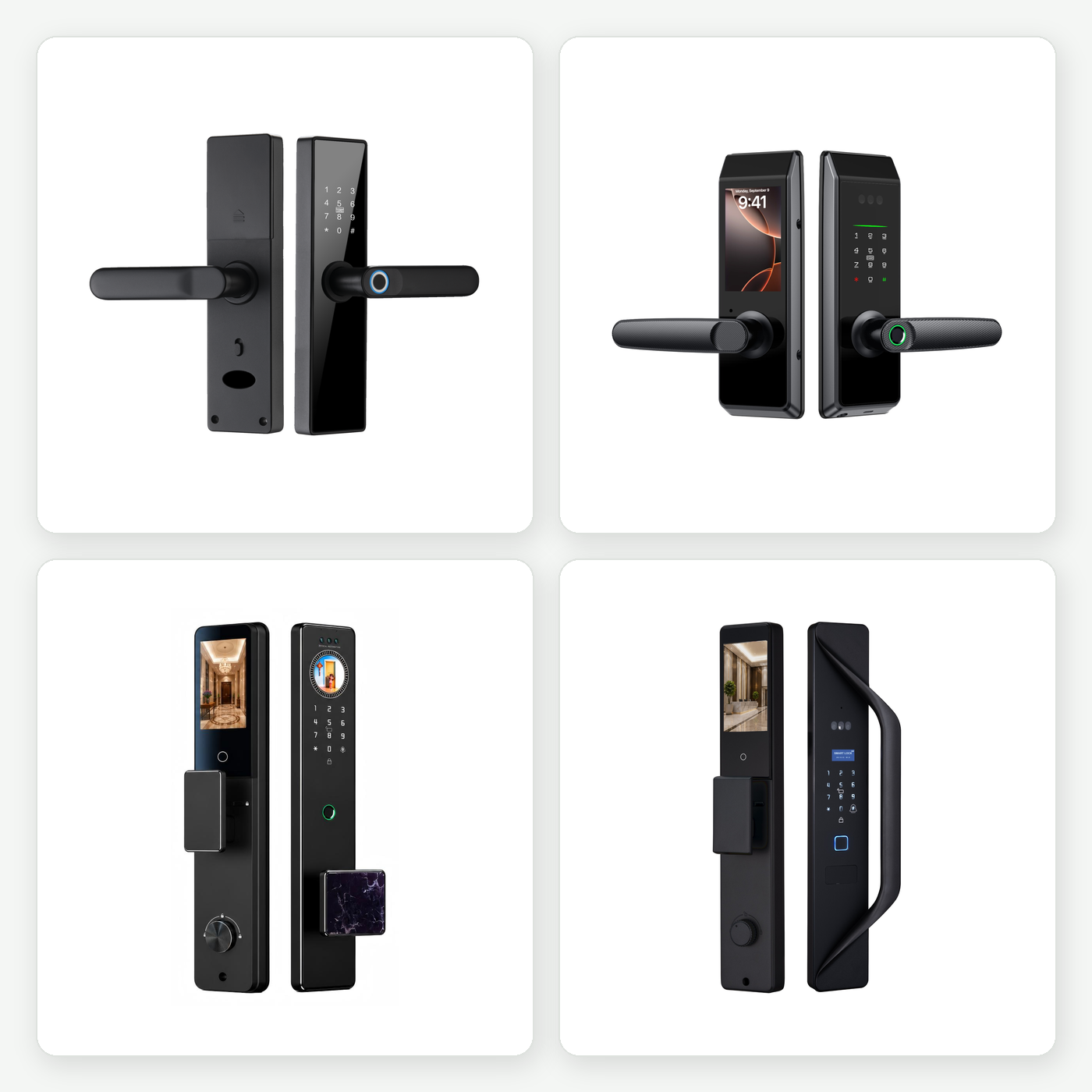

SUPTER is a China-based smart lock OEM and ODM partner that can organize product and preparation questions around buyer-supplied information.
SUPTER’s support does not replace local installer approval, an engineering assessment where required or the door manufacturer’s requirements. Compatibility and structural changes must be confirmed for the selected product and actual door.
Frequently Asked Questions
Can one smart lock fit every door?
Do not assume it. Compatibility depends on the configuration, construction, thickness, preparation, opening, clearance and installation.
Are door photos enough to confirm compatibility?
No. Add measurements, mortise references, opening information and restrictions; some conditions need qualified local confirmation.
What measurements should be prepared?
Include thickness, mortise and faceplate dimensions, depth, relevant operating references, frame and strike. Exact points depend on the mortise design.
Detailed Door and Installation Review
Why Door Compatibility Should Be Checked First
A smart lock can suit a market yet not suit a particular door. Incomplete information about the material, finished thickness, opening movement or mortise increases the risk of selecting an unsuitable sample, requiring unexpected door modification, delaying installation, repeating the evaluation, preparing a quotation on incomplete assumptions or creating later support complications.
Record Opening Direction Without Ambiguity
Left-opening and right-opening can be interpreted from different viewing sides, and terminology varies. Combine several references instead of relying on one label.
Provide a marked photograph or diagram from a stated viewing side. Identify indoor and outdoor sides where relevant so panel orientation and handle movement use the same reference.
Practical reminder. A photograph with the hinge position and opening movement marked is often clearer than writing only “left-opening” or “right-opening.”
Measure the Finished Door Thickness
Measure the actual installation area. Panels, reinforcement, double layers or finishes may differ from a nominal specification; record any variation.
The measured door must be checked against the exact proposed lock configuration. This guide does not provide a universal thickness range or assign one to any SUPTER model; compatibility depends on the model, mortise and configuration.
Document the Existing Mortise and Door Preparation
Clear reference measurements help compare the existing preparation with the proposed mortise. Useful information may include:
Backset generally measures from the door edge or faceplate to a defined operating point, while centre distance measures between specified operating points. The exact reference points depend on the mortise design and must be identified clearly.
Two mortises with a similar appearance are not necessarily compatible. Compare the complete proposed mortise with the existing opening, available depth, fixing positions and frame preparation. This checklist is not a universal drilling diagram.
Review Existing Openings and Any Proposed Modification
Photograph and describe the current condition before discussing additional work. Relevant details can include:
- Current cut-outs and previous drilling
- Decorative damage or cover marks
- Reinforcement plates
- Cables or internal components
- Edge preparation and available internal space
- Whether further cutting or drilling is permitted
Check Handle, Panel and Frame Clearance
The front and rear panels need enough unobstructed space for installation and normal use. Review the proposed layout against surrounding components, including:
Check edge clearance, frame interference and strike alignment, and confirm correct closing before evaluation. Do not assume a clearance value unless verified for the product, door and installation.
Door Compatibility Review Table
| Item to Check | Why It Matters | Information to Provide | Requires Separate Confirmation? |
|---|---|---|---|
| Door material and construction | Construction affects available space and permitted modification. | Material, layers, reinforcement and photographs. | Yes for special, regulated or unfamiliar construction. |
| Door thickness | The lock configuration must match the finished installation condition. | Measured thickness at the intended installation area. | Yes, against the exact product configuration. |
| Opening direction | Panel orientation and handle operation can depend on the opening condition. | Hinge side, viewing side, push or pull and a marked image. | Yes when terminology or orientation is unclear. |
| Existing mortise | The proposed mortise must be compared with the real preparation. | Faceplate, mortise dimensions, depth and reference points. | Yes, model- and mortise-dependent. |
| Current openings | Previous cut-outs and drilling may affect fit and finishing. | Clear close-ups, dimensions and modification limits. | Yes before any additional work. |
| Handle and panel clearance | Nearby hardware or moulding can interfere with movement or panel placement. | Front, rear and edge views with relevant measurements. | Yes for the proposed panel and handle. |
| Frame and strike | Closing and latching depend on alignment and preparation. | Frame, strike, gaps and current closing condition. | Yes if adjustment or modification is proposed. |
| Installation environment | Exposure and usage can affect product and installation selection. | Indoor or other environment and relevant project conditions. | Yes for the exact product specification. |
| Multiple door types | One sample door may not represent the complete project. | Door schedule or separate records for each condition. | Yes; review representative types separately. |
| Special or regulated doors | Modification may affect safety, compliance or door performance. | Door documentation and local professional assessment. | Always obtain appropriate specialist confirmation. |
Evaluate the Sample on a Representative Door
After the preliminary review, evaluate the exact sample and approved configuration on an actual representative door where possible. The review may include:
Record the sample, mortise configuration, accessories, door condition and any test modification so later discussions match the evaluation.
One successful test validates only that combination. Review representative examples separately when materials, thicknesses, openings or preparations differ.
Common Compatibility Mistakes to Avoid
The following shortcuts can leave important questions unresolved:
- Sending only a product photograph
- Using nominal instead of measured door thickness
- Describing only left or right opening
- Ignoring the existing mortise dimensions
- Assuming a similar-looking mortise will fit
- Testing one door for a project with several door conditions
- Confirming branding before mechanical compatibility
- Overlooking frame, strike or handle clearance
- Assuming every local installer uses the same terminology
What to Send Before Requesting a Recommendation
Prepare a concise project brief so the commercial and compatibility questions can be reviewed together:
- Target market
- Sales channel or project type
- Door material
- Measured door thickness
- Opening direction
- Door and frame photographs
- Existing mortise information
- Preferred functions
- Expected product position
- Estimated quantity
- Branding requirements
- Required documentation
- Target schedule
- Special compliance or installation restrictions
Requirements should be confirmed according to the target market, actual door and project. Estimated quantity helps frame the review while the product and configuration are being defined.
A Six-Step Compatibility Decision Framework
Keep the door, sample and order record connected through one documented sequence.
- 01
Identify the actual door and opening
Record material, thickness, hinges, movement, frame and environment.
- 02
Record the mortise and measurements
Identify reference points, openings, depth, faceplate and strike.
- 03
Confirm the product configuration
Review the exact body, panels, accessories and sample functions.
- 04
Review installation restrictions
Compare evidence and obtain local confirmation for modifications or special doors.
- 05
Test a representative sample
Evaluate fit, operation, closing, finish, documentation and installer feedback.
- 06
Confirm the mass-order configuration
Proceed after reviewing the tested combination and remaining variations.
A documented compatibility review reduces assumptions; it does not turn a sample result into a universal guarantee for every door.
Frequently Asked Questions
Why is opening direction sometimes unclear?
Left and right can be described from different viewing sides. Record the hinge side, stated viewing side and push or pull movement, preferably on a marked photograph or diagram.
Can one sample test represent an entire project?
Only when relevant conditions are the same. Review different materials, thicknesses, preparations or openings separately.
When should branding and packaging be confirmed?
Planning may start earlier, but final details should match the sample configuration that passes review.
